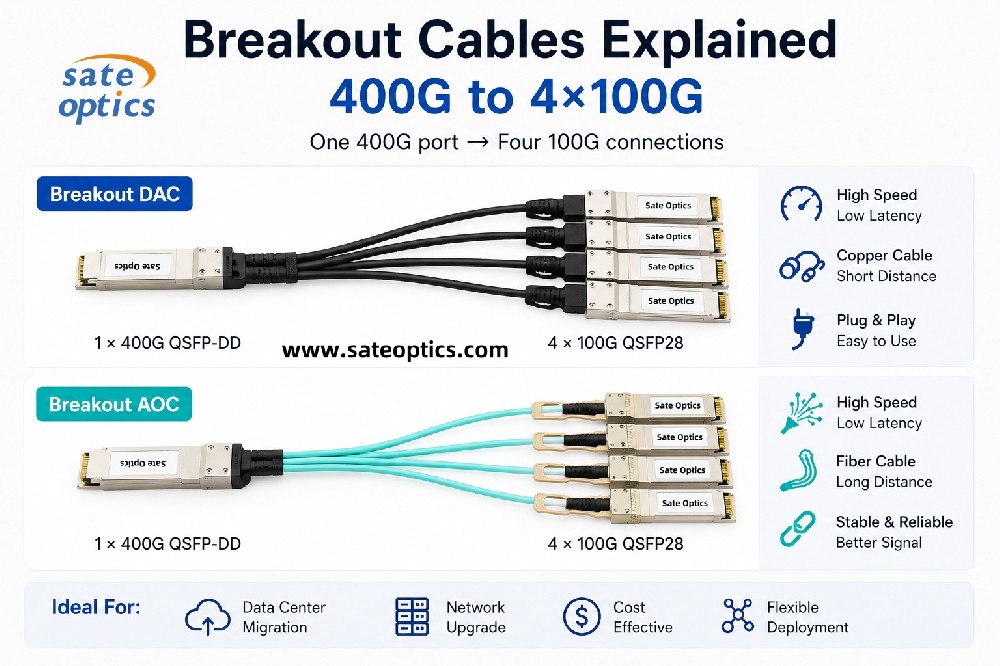

Breakout Cables Explained: 400G to 4×100G

One 400G port. Four 100G connections.

When a network is upgrading to 400G, many people naturally think they need a 400G connection at every endpoint.

But that's not always the case.

Sometimes, the switch has a 400G QSFP-DD port, while the servers, NICs, or downstream switches still use 100G QSFP28.

This is where a Breakout Cable can make the deployment much simpler.

What Is a Breakout Cable?

A breakout cable allows one high-speed port to connect to multiple lower-speed ports.

A common data center example is:

1 × 400G QSFP-DD → 4 × 100G QSFP28

Instead of connecting one 400G port to another 400G port, you can use one 400G port to connect four 100G devices.

Think of it this way:

400G port + 4×100G endpoints = Think Breakout.

This can be especially useful during network upgrades when different generations of equipment need to work together.

Why Use 400G to 4×100G Breakout?

A full 400G upgrade doesn't always happen all at once.

For example, a data center may already have:

• 400G-capable switches

• 100G servers

• 100G NICs

• Existing QSFP28 infrastructure

Replacing everything at the same time can increase both cost and deployment complexity.

A 400G QSFP-DD to 4×100G QSFP28 breakout cable provides another option.

You can upgrade the switch side first while continuing to connect existing 100G equipment.

The result?

Higher port capacity without requiring every connected device to move to 400G immediately.

Breakout DAC vs Breakout AOC

Not all breakout cables are the same.

Two common choices are Breakout DAC and Breakout AOC.

1. 400G to 4×100G Breakout DAC

A Direct Attach Copper (DAC) breakout cable uses copper conductors and has optical transceiver ends integrated into the cable assembly.

Typical advantages include:

• Short-distance connections

• Low latency

• Simple deployment

• Cost-effective connectivity

• No separate transceiver purchase

Breakout DAC is often considered for short connections inside data centers, such as switch-to-server or switch-to-switch connections.

Typical application:

400G QSFP-DD switch → 4×100G QSFP28 server/NIC ports

If the equipment is located close together, DAC can be a very practical choice.

2. 400G to 4×100G Breakout AOC

An Active Optical Cable (AOC) uses optical fiber inside the cable assembly.

Compared with copper DAC, AOC can be a better choice when you need greater reach or easier cable management over longer data center connections.

Typical advantages include:

• Fiber-based connectivity

• Longer reach than short DAC applications

• Lower weight and smaller cable diameter

• High-speed data center connectivity

• No separate optical transceiver required at the cable ends

Typical application:

400G QSFP-DD switch → 4×100G QSFP28 devices

AOC can be useful when the endpoints are farther apart or when cable size and routing are important considerations.

DAC or AOC: Which One Should You Choose?

A simple way to think about it:

The important point is:

Don't choose DAC or AOC based only on 400G/100G speed.

The actual deployment distance, port compatibility, cable routing, and equipment support all matter.

Where Are 400G Breakout Cables Used?

1. Data Center Network Upgrades

A common scenario is upgrading a switch from 100G to 400G while some connected devices remain at 100G.

A breakout cable can help bridge this transition.

400G switch → 4×100G devices

2. AI & High-Performance Computing Networks

High-speed switching is becoming increasingly important in AI and HPC environments.

But not every device in the network necessarily operates at the same speed.

Breakout connectivity can provide additional flexibility when different port speeds need to coexist.

3. Server-to-Switch Connectivity

If a switch provides 400G QSFP-DD ports but servers still use 100G QSFP28 interfaces, a 400G to 4×100G breakout solution can connect multiple 100G endpoints through one 400G switch port.

4. Leaf-Spine Network Architecture

Breakout cables can also be considered in data center leaf-spine architectures where higher-speed uplinks need to connect to multiple lower-speed interfaces.

This can help network designers make better use of available switch ports.

What Should You Check Before Buying?

This is where many breakout cable purchases go wrong.

A cable being labeled “400G to 4×100G” does not automatically mean it will work with every switch.

Before ordering, check:

1. Switch Compatibility

Confirm that the 400G QSFP-DD port supports the required breakout configuration.

2. 100G Port Compatibility

Check whether the four 100G endpoints support the required QSFP28 interface and breakout mode.

3. Breakout Configuration

Make sure you need:

400G → 4×100G

rather than another configuration such as 400G → 2×200G.

4. DAC or AOC?

Choose according to the actual distance, cable routing and deployment environment.

5. Equipment Compatibility

Check the switch, NIC, server and other endpoint requirements before purchasing.

6. Cable Length

Don't select the cable length simply because it is cheaper.

Measure the actual rack and cable-routing distance first.

Common Breakout Product Keywords

If you are searching for a breakout solution, these are some useful product terms:

• 400G QSFP-DD to 4×100G QSFP28 Breakout DAC

• 400G QSFP-DD to 4×100G QSFP28 Breakout AOC

• 400G to 4×100G DAC

• 400G to 4×100G AOC

• 400G QSFP-DD Breakout Cable

• 100G QSFP28 Breakout Cable

• 400G QSFP-DD DAC

• 400G QSFP-DD AOC

• QSFP-DD to QSFP28 Breakout

• 400G Data Center Breakout Cable

These keywords are useful because buyers often search by speed + connector + cable type, rather than simply searching for “breakout cable.”

FAQ: 400G to 4×100G Breakout Cables

What is a 400G breakout cable?

A 400G breakout cable connects one 400G QSFP-DD interface to multiple lower-speed interfaces. A common configuration is 400G to 4×100G QSFP28.

Can 400G QSFP-DD connect to four 100G QSFP28 ports?

Yes, a supported 400G QSFP-DD to 4×100G QSFP28 breakout solution can provide this configuration. However, the switch and endpoint equipment must support the required breakout mode.

What is the difference between breakout DAC and breakout AOC?

Breakout DAC uses copper cable and is commonly used for shorter connections. Breakout AOC uses optical fiber and can be more suitable when longer reach, lighter cabling or easier routing is required.

Is breakout only for 400G?

No.

Breakout configurations exist at multiple network speeds.

For example:

100G → 4×25G

200G → 2×100G

400G → 4×100G

The exact configuration depends on the network equipment and supported interfaces.

Does every 400G QSFP-DD port support 4×100G breakout?

Not necessarily.

Always verify the switch/NIC documentation and supported breakout modes before purchasing.

Should I choose DAC or AOC?

For short, cost-sensitive connections, DAC is often a practical option.

For longer or more flexible fiber-based connections, AOC may be a better fit.

The right choice depends on the actual deployment.

The Simple Rule

You don't always need a 400G optic at every endpoint just because your switch has a 400G port.

Sometimes the smarter solution is:

1 × 400G → 4 × 100G

That's the value of Breakout.

And when choosing between DAC and AOC, don't start with the cable price.

Start with:

Port → Speed → Distance → Cable Type → Compatibility

That simple checklist can prevent a lot of expensive mistakes.
