Auto-Negotiation Explained: Why SFP/SFP+ Links Stay Down

Topic: Auto-Negotiation in Ethernet Networking

You connect the cable.

The transceivers are installed.

The switch is powered on.

But the link is still DOWN.

Before replacing the optical transceiver, there are several things worth checking first—and Auto-Negotiation can be one of them.

However, there is an important detail:

Auto-Negotiation does not work the same way across every Ethernet interface.

For network engineers and buyers, understanding where it matters can save time, unnecessary module replacements, and troubleshooting headaches.

What Is Auto-Negotiation?

Auto-Negotiation is an Ethernet function that allows two connected interfaces to exchange information and determine supported operating parameters.

Depending on the interface and Ethernet standard, this can include parameters such as:

• Link speed

• Duplex mode

• Other supported capabilities

In simple terms:

Two devices try to agree on how the connection should operate.

When the settings or supported capabilities do not match, the expected link may not come up.

But this does not mean that every optical link relies on Auto-Negotiation.

That distinction is important when troubleshooting SFP and SFP+ deployments.

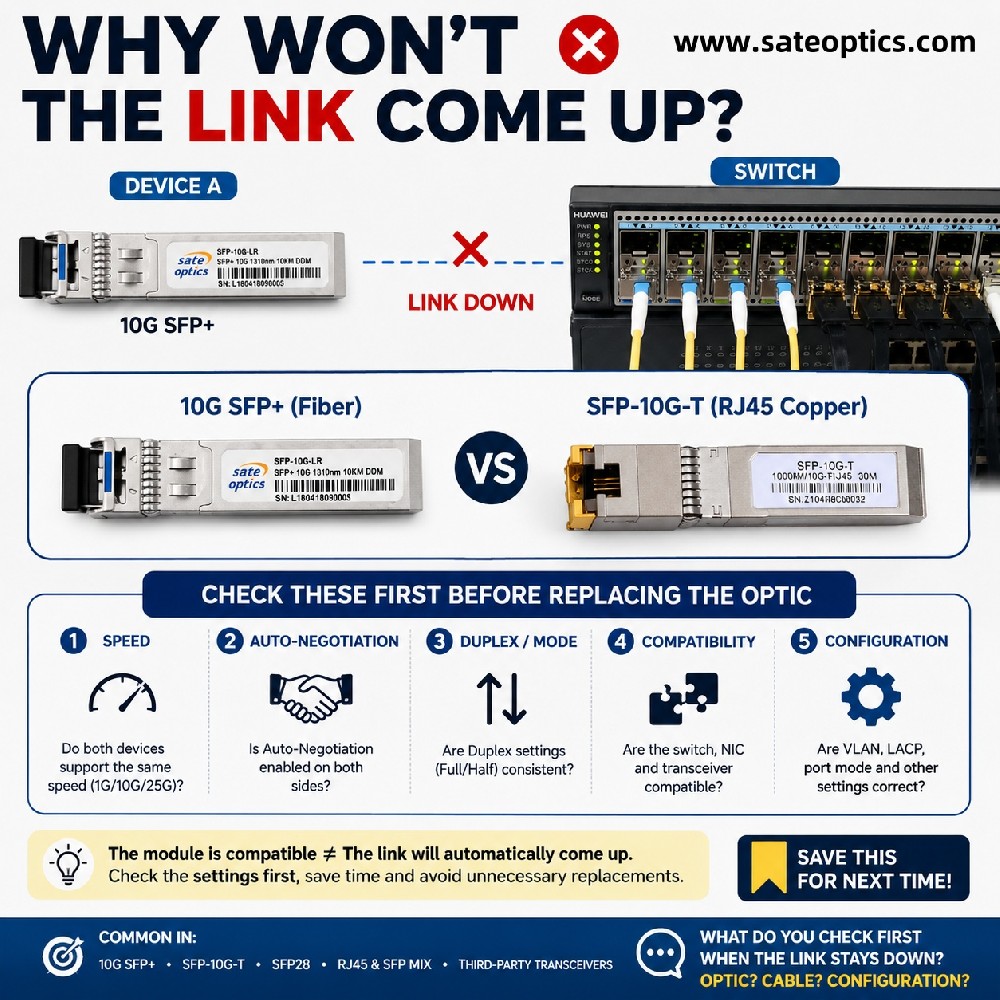

Why Can Two Devices Refuse to Connect?

Imagine a common troubleshooting situation:

Switch A → SFP+ → Fiber → SFP+ → Switch B

Both transceivers are installed correctly.

The fiber appears to be connected.

But the port remains down.

It is tempting to immediately conclude:

“The SFP must be defective.”

Not necessarily.

A link-down problem can come from several different layers.

Check these first:

1. Speed

Are both devices configured for the expected speed?

For example:

• 1G

• 10G

• 25G

A physically similar SFP does not automatically mean that the host port supports the same operating mode.

2. Auto-Negotiation

Check whether Auto-Negotiation is supported and required for the particular interface.

This is especially relevant for interfaces such as 10GBASE-T / SFP-10G-T, where copper Ethernet negotiation can be important.

For many traditional 10G optical Ethernet interfaces such as 10GBASE-SR and 10GBASE-LR, the troubleshooting focus is different. Don't assume that turning Auto-Negotiation on or off is the solution simply because the link is down.

3. Duplex / Interface Mode

For interfaces where duplex negotiation applies, make sure both sides use compatible settings.

A mismatch between expected operating modes can prevent normal communication.

4. Compatibility

Check the complete connection:

Switch → Port → Transceiver → Fiber/Copper → Transceiver → Port → NIC/Switch

A module can be correctly coded for a particular platform and still not be suitable for the actual link configuration.

This is why:

“Compatible SFP” does not automatically mean “working link.”

5. Configuration

Don't forget the host device.

Check:

• Port status

• Port speed

• Auto-Negotiation settings where applicable

• VLAN configuration

• Port mode

• NIC settings

• FEC requirements where applicable

• Supported transceiver type

Sometimes the optical module is perfectly healthy—the port configuration is the real problem.

10G SFP+ vs SFP-10G-T: Why the Difference Matters

This is one reason it is useful to distinguish fiber SFP+ from RJ45 SFP+ during troubleshooting.

10G SFP+ Fiber

Common examples include:

• SFP-10G-SR

• SFP-10G-LR

• 10G SFP+ ER/ZR solutions

These modules use optical interfaces and are commonly deployed with multimode or single-mode fiber depending on the module.

For a 10G optical link, troubleshooting normally starts with:

Optic → Fiber → Wavelength → Distance → Port compatibility → Configuration

Auto-Negotiation should not automatically be treated as the primary cause of a traditional 10G optical link failure.

SFP-10G-T

An SFP-10G-T converts a compatible SFP+ port into a 10G RJ45 copper interface.

The troubleshooting path is different.

You may need to consider:

• Copper cable category

• 10GBASE-T support

• Speed negotiation

• Auto-Negotiation

• Switch compatibility

• NIC compatibility

• Distance

This is why simply saying:

“It's a 10G SFP, so the settings should be the same.”

can lead to unnecessary troubleshooting.

A Simple Link-Down Checklist

When a new connection stays down, don't immediately replace the optic.

Use this sequence:

STEP 1 — Check the port

Is the switch port administratively up?

STEP 2 — Check the speed

Does the port support the required speed?

STEP 3 — Check the transceiver

Is the SFP/SFP+ supported by the platform?

STEP 4 — Check the medium

Fiber or copper?

Correct fiber type, connector, wavelength and distance?

STEP 5 — Check Auto-Negotiation

Only where it applies to the interface and configuration.

STEP 6 — Check the configuration

Port mode, VLAN, NIC settings, FEC and other platform-specific requirements.

STEP 7 — Then test another known-good optic or cable

This helps isolate the actual source of the problem.

Common Application Scenarios

Understanding Auto-Negotiation becomes particularly useful when working with mixed network environments.

1. Data Center 10G Links

Typical deployment:

10G Switch → SFP-10G-LR → Single-Mode Fiber → SFP-10G-LR → Switch

For this type of optical connection, focus first on transceiver compatibility, fiber, wavelength, distance and port configuration rather than assuming Auto-Negotiation is the problem.

2. Switch-to-Server Connections

A server may use:

Switch SFP+ Port → 10G SFP+ → Fiber → NIC

Check the switch port, NIC capabilities and transceiver support together.

3. 10G RJ45 Connections

Typical deployment:

Switch SFP+ Port → SFP-10G-T → Cat6A/Cat6 Cable → Server

Here, copper Ethernet characteristics and negotiation settings can become much more relevant.

4. Mixed 1G / 10G Network Upgrades

During network upgrades, older equipment and newer equipment may coexist.

For example:

1G → 10G → 25G

The fact that two ports look physically similar does not mean they support the same operating mode.

Always check the actual platform specifications.

Popular Transceiver Models to Check

For troubleshooting and network upgrades, some commonly searched product types include:

10G SFP+ Fiber

• SFP-10G-SR

• SFP-10G-LR

• SFP-10G-ER

• SFP-10G-ZR

10G RJ45 Copper

• SFP-10G-T

• 10GBASE-T SFP+

25G

• SFP-25G-SR

• SFP-25G-LR

• SFP28

The exact supported model depends on the switch, NIC, distance, cabling and network architecture.

The Most Common Troubleshooting Mistake

One of the most expensive troubleshooting habits is:

“The link is down, so replace the SFP.”

Sometimes that works.

But sometimes the SFP was never the problem.

A better approach is:

Port → Speed → Compatibility → Medium → Configuration → Transceiver

This simple process can prevent unnecessary replacements and reduce troubleshooting time.

And remember:

A compatible optical module is only one part of a working link.

The switch, NIC, transceiver, cable/fiber and configuration all need to work together.

FAQ: Auto-Negotiation and SFP/SFP+ Modules

What does Auto-Negotiation do?

Auto-Negotiation allows supported Ethernet interfaces to exchange information and determine compatible operating parameters. The exact behavior depends on the Ethernet interface and standard.

Do all SFP+ modules use Auto-Negotiation?

No.

This is an important distinction.

Traditional 10G optical interfaces such as 10GBASE-SR and 10GBASE-LR should not automatically be treated like 10GBASE-T copper interfaces. Always check the Ethernet standard and platform documentation.

Does SFP-10G-T support Auto-Negotiation?

10GBASE-T interfaces commonly use Ethernet negotiation mechanisms, but actual behavior depends on the SFP-10G-T module and the host platform.

Check both sides before changing the setting.

Can Auto-Negotiation cause a link to stay down?

Yes, where the interface depends on compatible negotiation or related operating parameters. But a link-down condition can also come from fiber, cabling, optics, port configuration, unsupported modules, speed mismatches or other compatibility issues.

Why is my 10G SFP+ link down?

Possible causes include:

• Unsupported transceiver

• Incorrect fiber type

• Wrong wavelength

• Excessive link loss

• Incorrect port configuration

• Unsupported speed

• Dirty or damaged connectors

• Incorrect module pairing

• Platform compatibility issues

Don't assume the optic is defective before checking the complete link.

Can I use an SFP-10G-T in any SFP+ port?

No.

The physical form factor alone does not guarantee compatibility.

The switch or NIC must support the specific SFP-10G-T module and its electrical, thermal and Ethernet requirements.

Choosing the Right SFP Is Only the First Step

When buying optical transceivers, don't stop at:

“Is this SFP compatible with my switch?”

Also ask:

What speed?
Fiber or copper?
What distance?
What wavelength?
What port standard?
What does the NIC support?
Are there platform-specific requirements?

For third-party transceivers, these checks become even more important.

A good optical solution should be evaluated as part of the complete network link, not as an isolated module.
