Why Some “Optics Problems” Are Not Actually Optics Problems

When Unstable Fiber Links Have Nothing to Do with the Optical Module

In modern enterprise and telecom networks, optical transceivers are often the first components blamed when links become unstable.

Packet loss?
Random link drops?
Auto-negotiation failures?

Many engineers immediately suspect the optics.

But in real-world deployments — especially in multi-vendor environments — the root cause is often much deeper.

Recently, I followed a troubleshooting discussion involving older switches like the MikroTik CRS106 Cloud Smart Switch connected with mixed-vendor equipment in a production network.

At first, everything looked like a classic optical compatibility problem.

But after several days of testing, swapping modules, and checking fiber links, the final solution had very little to do with the transceivers themselves.

The Symptoms: Everything Pointed to “Bad Optics”

The network showed multiple serious issues:

• Packet loss across ports

• Random link instability

• Auto-negotiation problems

• Devices failing to detect links

• Inconsistent behavior between vendors

Naturally, the first assumption was:

“The optical modules must be faulty or incompatible.”

This happens frequently in environments where:

• third-party optics are used

• legacy hardware remains in production

• multiple switch vendors coexist

• firmware generations differ across devices

As a result, troubleshooting often begins with:

• replacing transceivers

• swapping fiber cables

• testing different optic vendors

• re-coding modules

• lowering speeds

• changing ports

Sometimes this works.

But sometimes it only hides the real issue.

The Actual Root Cause

After extensive troubleshooting, the network was finally stabilized through:

• firmware updates

• specific configuration changes

• compatibility adjustments

The result:

• stable links

• no more packet loss

• successful negotiation

• reliable connectivity

The optical modules themselves were not the true problem.

Instead, the instability came from:

• firmware behavior

• switch operating system handling

• compatibility logic

• older hardware limitations

Why DOM/DDM and Log Analysis Matter Before Replacing Optics

One important lesson from real-world troubleshooting is this:

Before replacing optical modules, engineers should first analyze:

• DOM/DDM values

• switch logs

• platform compatibility behavior

Modern optical transceivers provide valuable diagnostic data, including:

• Tx power

• Rx power

• temperature

• voltage

• bias current

• warning and alarm thresholds

These values often reveal whether the issue is truly optical, environmental, or system-related.

For example:

• low Rx power may indicate dirty connectors or fiber loss

• rising bias current may suggest laser aging

• thermal alarms can explain intermittent link drops

At the same time, switch logs frequently expose issues unrelated to the optics themselves, such as:

• firmware bugs

• unsupported transceiver policies

• EEPROM interpretation problems

• auto-negotiation failures

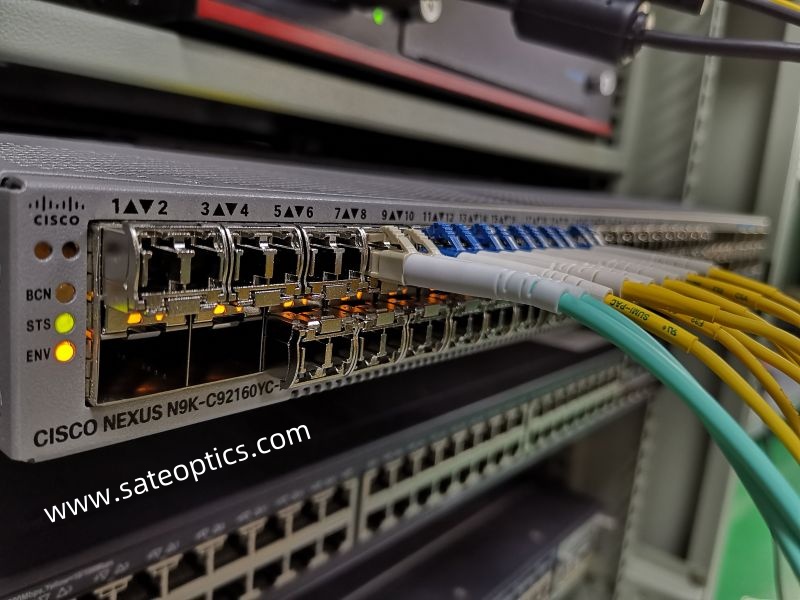

On platforms like Cisco Systems, engineers sometimes overlook commands related to unsupported third-party optics, causing unnecessary module replacement and prolonged troubleshooting.

Without proper DOM/DDM and log analysis, teams can easily fall into what many engineers jokingly call:

“Debugging by chance.”

In multi-vendor networks, understanding both the optical layer and the system layer is often far more important than simply swapping transceivers.

Why This Happens in Multi-Vendor Networks

Modern networking is no longer only about optical power and transmission distance.

Today’s environments involve complex interactions between:

• switch operating systems

• EEPROM interpretation

• vendor coding policies

• auto-negotiation standards

• PHY behavior

• firmware compatibility

• hardware tolerance

This becomes especially important in:

• data centers

• ISP networks

• enterprise campuses

• telecom edge infrastructure

• mixed-generation deployments

Older switches may react unpredictably to newer optics or firmware revisions — even when the transceivers themselves fully meet industry specifications.

Common Problems Mistaken for “Optics Failure”

1. Firmware Issues

Older firmware may incorrectly handle:

• DOM/DDM readings

• EEPROM information

• power thresholds

• link timing behavior

A simple firmware update can sometimes solve “optics problems” immediately.

2. Compatibility Restrictions

Some platforms apply strict vendor validation policies.

This may affect:

• link initialization

• port behavior

• monitoring functions

• warning generation

In these situations, the optic itself may be fully functional while the software handling creates instability.

3. Auto-Negotiation Problems

Speed and negotiation mismatches can create symptoms that look like hardware failure.

Common causes include:

• forced speed settings

• FEC mismatches

• duplex negotiation issues

• PHY implementation differences

The optics become the visible suspect even when the root cause sits elsewhere.

4. Aging Hardware Limitations

Legacy switches sometimes struggle with:

• newer low-power optics

• higher-density modules

• thermal differences

• tighter signal tolerances

Even standards-compliant optics can expose weaknesses in older hardware platforms.

Why Replacing Optics First Can Be Misleading

Many teams still troubleshoot by:

1. replacing optics

2. changing vendors

3. swapping cables repeatedly

But this approach can:

• increase downtime

• raise troubleshooting costs

• create unnecessary vendor lock-in

• delay root-cause discovery

In some cases, replacing the optics only temporarily masks the underlying issue.

A Better Troubleshooting Approach

Before blaming the transceiver, engineers should verify:

System Layer

• firmware version

• switch OS behavior

• port configuration

• FEC settings

• negotiation settings

Physical Layer

• fiber cleanliness

• connector condition

• patch panel quality

• optical loss

• power budget

Compatibility Layer

• EEPROM coding

• vendor interoperability

• platform support policies

• hardware generation compatibility

A structured troubleshooting process almost always works better than random hardware replacement.

The Bigger Lesson for Network Engineers

If a network only works under:

• very specific settings

• narrow compatibility conditions

• particular firmware versions

…then the infrastructure may already be fragile.

Reliable networks should remain stable across:

• standard-compliant optics

• normal firmware updates

• reasonable configuration changes

• multi-vendor interoperability

Long-term stability depends on understanding the entire system — not just the transceiver.

Final Thoughts

Optical modules are often blamed first because they sit directly at the physical connection point.

But many real-world “optics problems” are actually caused by:

• firmware behavior

• compatibility handling

• switch operating systems

• negotiation logic

• platform limitations

Successful troubleshooting requires engineers to look beyond the transceiver itself.

Sometimes the “bad optic” is simply exposing a deeper system issue.

And without proper diagnostics, troubleshooting can quickly become:

“Debugging by chance.”
