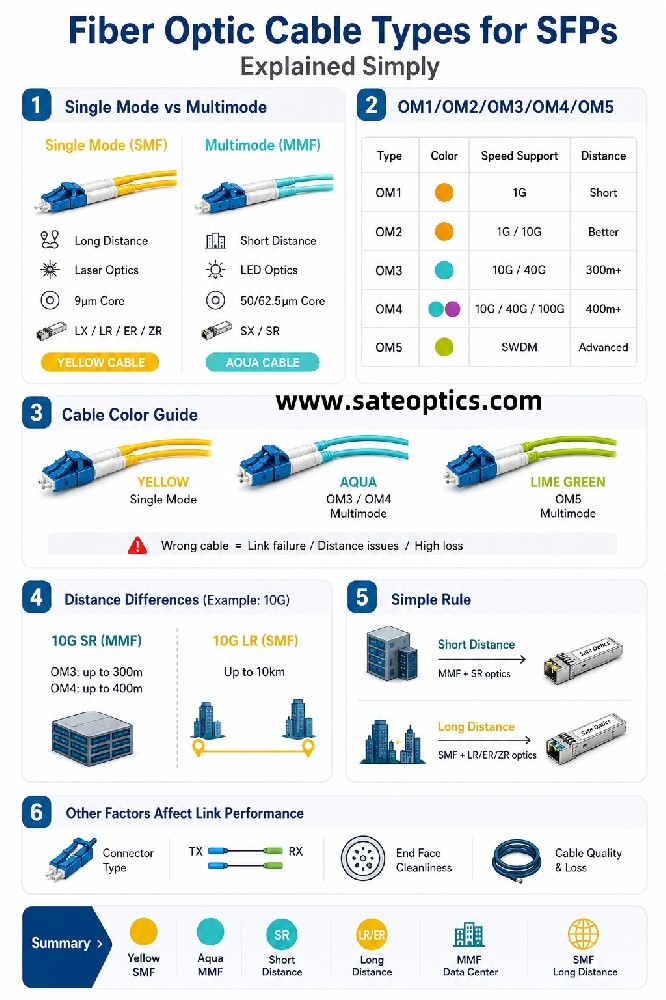

Fiber Optic Cable Types for SFPs — Explained Simply 👇

Choosing the wrong fiber cable is one of the most common reasons why optical links fail.

Many people buy the correct SFP module…
but still get:

❌ No link
❌ Shorter transmission distance
❌ Unstable connection
❌ Compatibility confusion

Because not all fiber cables are the same.

Here’s a simple guide 👇

1️⃣ Single Mode vs Multimode Fiber

🟡 Single Mode Fiber (SMF)

Usually used for:

✅ Long distance
✅ Telecom networks
✅ Campus links
✅ Data center interconnection

Typical features:

• Small core size (9μm)
• Uses laser optics
• Longer transmission distance
• Usually works with:
LX / LR / ER / ZR optics

Cable color is usually:

🟡 Yellow

🔵 Multimode Fiber (MMF)

Usually used for:

✅ Short distance inside buildings
✅ Data centers
✅ Server rooms

Typical features:

• Larger core size (50μm or 62.5μm)
• Lower cost for short links
• Usually works with:
SX / SR optics

Cable colors are usually:

🔵 Aqua
🟣 Violet (OM4/OM5 in some cases)

2️⃣ OM1 vs OM2 vs OM3 vs OM4 vs OM5

This is where many people get confused.

Here’s the simple version:

3️⃣ Why Cable Color Matters

Cable color is not just decoration.

It helps engineers quickly identify fiber type.

Common examples:

🟡 Yellow → Single Mode
🔵 Aqua → OM3 / OM4 Multimode
🟢 Lime Green → OM5

Using the wrong cable can cause:

❌ Link failure
❌ Distance problems
❌ High optical loss

4️⃣ Distance Differences Matter A LOT

Example for 10G optics:

10G SR Module

• MMF only
• OM3: up to 300m
• OM4: up to 400m

10G LR Module

• SMF only
• Up to 10km

This is why:

👉 The fiber type is just as important as the SFP itself.

5️⃣ Simple Rule Most Engineers Use

Short distance inside racks/buildings?

→ MMF + SR optics

Long distance between buildings/sites?

→ SMF + LR/ER/ZR optics

That’s the easiest way to avoid mistakes.

6️⃣ One More Important Thing 👇

Even the correct fiber type may still fail if:

⚠️ Connector type is wrong
⚠️ Fiber polarity is incorrect
⚠️ End face is dirty
⚠️ Cheap cables have high insertion loss

In real deployments,
cable quality matters more than many people think.

Quick Summary

🟡 Yellow cable → Usually Single Mode
🔵 Aqua cable → Usually Multimode
📏 SR optics → Short distance
📡 LR/ER/ZR optics → Long distance
🏢 MMF → Data center short links
🌎 SMF → Long-distance transmission

Choosing optics is important.

But choosing the correct fiber cable is what makes the link actually work. 🔍
