CWDM vs DWDM: When to Use Each? A Practical Guide to WDM Technology

As network bandwidth demand continues to grow, technologies like CWDM (Coarse Wavelength Division Multiplexing) and DWDM (Dense Wavelength Division Multiplexing) have become essential in modern fiber optic networks.

However, many network designers and buyers face a common challenge:
👉 Which one should you choose — CWDM or DWDM?

In this guide, we break down the key differences and help you decide which solution best fits your application.

What Is CWDM and DWDM?

Both CWDM and DWDM are based on WDM (Wavelength Division Multiplexing) technology, which allows multiple optical signals to be transmitted over a single fiber by using different wavelengths.

CWDM (Coarse Wavelength Division Multiplexing)

CWDM uses wider wavelength spacing (typically 20 nm), which makes it:

• Simpler to deploy

• Lower in cost

• Suitable for shorter distances

It typically supports up to 18 channels.

DWDM (Dense Wavelength Division Multiplexing)

DWDM uses much narrower wavelength spacing (0.8 nm / 0.4 nm), allowing:

• Higher channel density

• Greater transmission capacity

• Longer transmission distances

DWDM systems can support dozens or even hundreds of channels.

CWDM vs DWDM: Key Differences

When comparing CWDM vs DWDM, the main differences come down to:

• Channel spacing and capacity

• Transmission distance

• Cost and complexity

• Scalability

Instead of focusing only on specifications, it’s more useful to understand how these differences affect real-world applications.

When to Use CWDM

CWDM is a practical solution when cost efficiency and simplicity are the priority.

Best use cases for CWDM:

• Enterprise campus networks

• Access and aggregation networks

• Short-distance data center interconnect (DCI)

• Networks with moderate bandwidth requirements

Why choose CWDM?

• Lower initial investment

• Reduced power consumption

• Easier deployment and maintenance

👉 If your network does not require extremely high capacity or long-distance transmission, CWDM is often the most economical choice.

When to Use DWDM

DWDM is designed for high-capacity and long-distance transmission scenarios.

Best use cases for DWDM:

• Telecom backbone networks

• Long-haul transmission (40 km, 80 km, 100 km and beyond)

• Large-scale data center interconnect (DCI)

• High-bandwidth applications (100G / 200G / 400G)

Why choose DWDM?

• Maximizes fiber utilization

• Supports future scalability

• Enables ultra-high bandwidth transmission

👉 If fiber resources are limited or traffic demand is rapidly growing, DWDM provides a long-term solution.

CWDM or DWDM: How to Choose?

To select the right technology, consider the following three factors:

1. Transmission Distance

Short to medium distances → CWDM
Long distances → DWDM

2. Bandwidth Requirements

Moderate capacity → CWDM
High and scalable capacity → DWDM

3. Budget vs Future Growth

Cost-sensitive projects → CWDM
Growth-oriented networks → DWDM

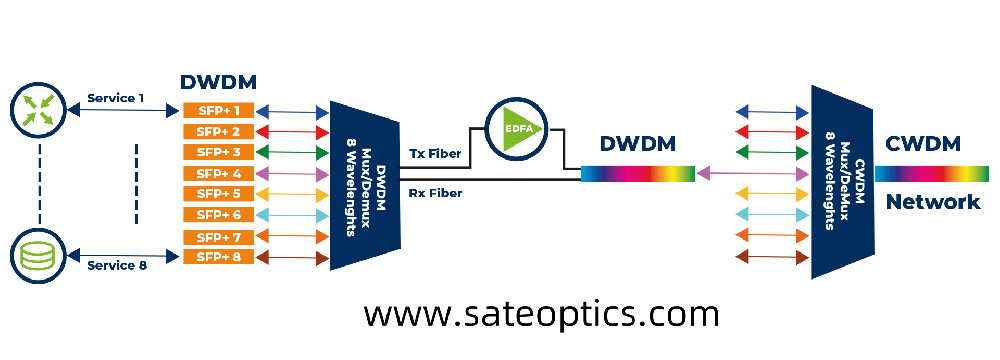

Can CWDM and DWDM Be Used Together?

Yes. In real-world network design, CWDM and DWDM are not always mutually exclusive.

Many deployments use:

• CWDM in access or aggregation layers

• DWDM in backbone or core layers

Some networks also start with CWDM and upgrade to DWDM as bandwidth demand increases.

Conclusion

Both CWDM and DWDM play important roles in modern optical networks.

• CWDM is ideal for cost-effective, short-distance applications

• DWDM is the preferred choice for high-capacity, long-distance transmission

Choosing the right solution depends on your specific network requirements, including distance, bandwidth, and scalability.
