DAC Cable Application
Direct Attach Copper (DAC) Cable
Sate Optics is a leading manufacturer and supplier of Direct Attach Copper (DAC) cable. The Sate Optics DAC cable product family is comprised of cable assemblies with Small Form-factor Pluggable (SFP), Quad Small Form-factor Pluggable (QSFP) and Octal Small Form-factor Pluggable (OSFP) single and double density series modules. Sate Optics offers a full line of active and passive direct attach copper cables from 10Gbps SFP+ to 400Gbps OSFP and QSFP-DD400 designed to meet the requirements of the most demanding data centres with industry leading quality and reliability.
Direct Attach Copper (DAC) Cable Technical Information

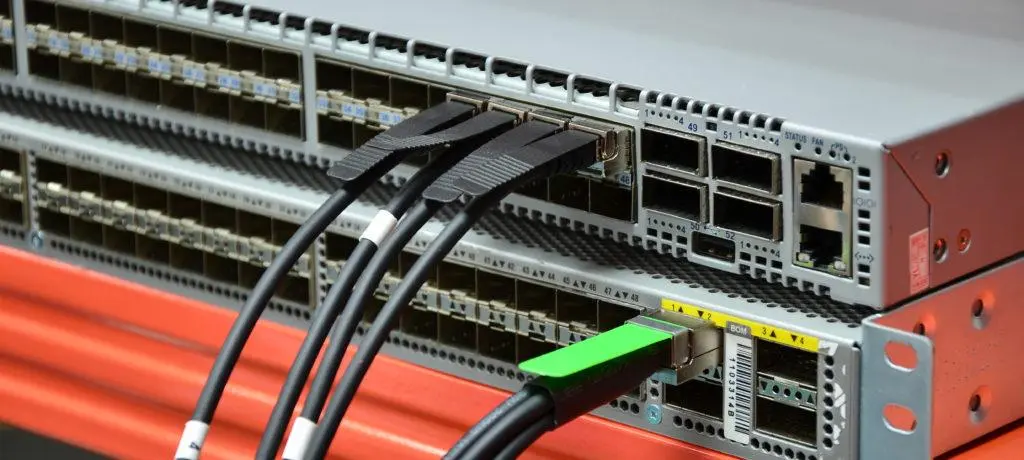

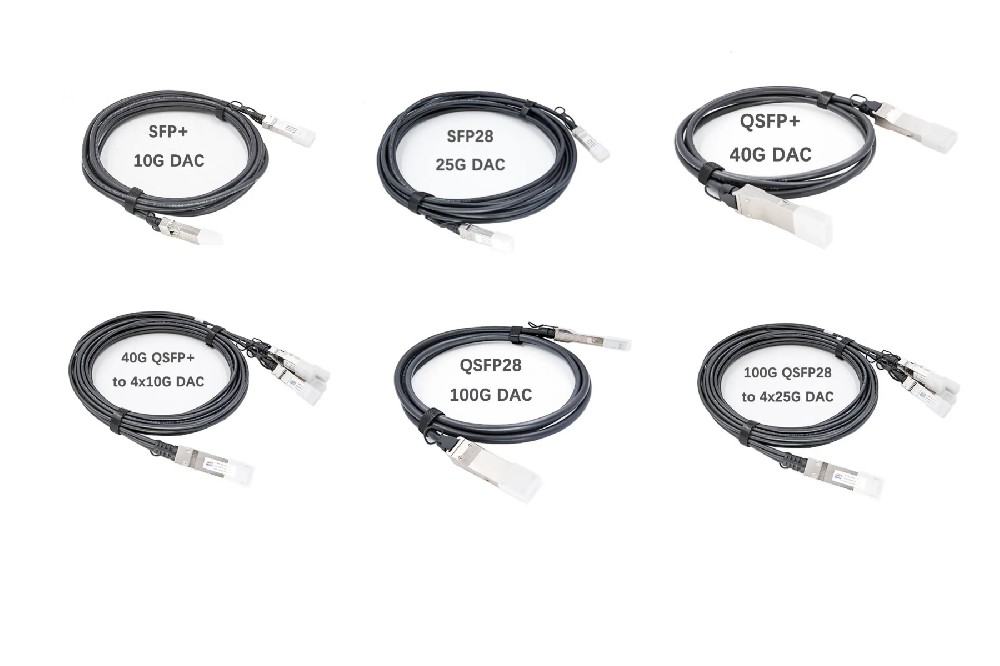

DAC cable from Sate Optics is offered with many different form factors, total speeds, lane speeds and lengths in straight and various breakout configurations. See table below:
| Sate Optics Direct Attach Copper Cable Products | Total Speed (Gbps) | Lanes, Lane Speed (Gbps) | Lengths (M) | Twinax (n-pair) | Application |
| 10Gbps SFP+ and 40Gbps QSFP+ | |||||
| SFP+ Passive DAC Cable | 10 | 1, 10 | 0.5 – 5 | 2 | E, F |
| QSFP+ Passive DAC Cable | 40 | 4, 10 | 8 | E, I, F | |
| QSFP+ to 4x SFP+ Passive Breakout DAC Cable | 40/ 4x 10 | 4, 10 | 4x 2 | E. F | |
| 25Gbps SFP28 and 100Gbps QSFP28 | |||||
| SFP28 Passive DAC Cable | 25 | 1, 25 | 0.5 – 5 | 2 | E, F |
| QSFP28 Active DAC Cable | 100 | 4, 25 | 4 – 9 | 8 | E, I, F |
| QSFP28 Passive DAC Cable | 100 | 4, 25 | 0.5 – 5 | 8 | E, I , F |
| QSFP28 to 2x QSFP28 Active Breakout DAC Cable | 100/ 2x 50 | 4, 25 | 4 – 9 | 2x 4 | E |
| QSFP28 to 2x QSFP28 Passive Breakout DAC Cable | 100/ 2x 50 | 4, 25 | 0.5 – 5 | 2x 4 | E |
| QSFP28 to 4x SFP28 Active Breakout DAC Cable | 100/ 4x 25 | 4, 25 | 4 – 9 | 2x 4 | E |
| QSFP28 to 4x SFP28 Passive Breakout DAC Cable | 100/ 4x 25 | 4, 25 | 0.5 – 5 | 4x 2 | E, F |
| 50Gbps SFP56, 100Gbps SFP-DD and 200Gbps QSFP56 | |||||
| SFP56 Passive DAC Cable | 50 | 1, 50 | 0.5 – 3 | 2 | E. F |
| SFP-DD Passive DAC Cable | 100 | 2, 50 | 0.5 – 3 | 4 | E, F |
| QSFP56 Active DAC Cable | 200 | 4, 50 | 4 – 9 | 8 | E, I, F |
| QSFP56 Passive DAC Cable | 200 | 4, 50 | 0.5 – 3 | 8 | E, I, F |
| QSFP56 to 2x QSFP56 Active Breakout DAC Cable | 200/ 2x 100 | 4, 50 | 4 – 9 | 2x 4 | E, I |
| QSFP56 to 2x QSFP56 Passive Breakout DAC Cable | 200/ 2x 100 | 4, 50 | 0.5 – 3 | 2x 4 | E, I |
| QSFP56 to 4x SFP56 Active Breakout DAC Cable | 200/ 4x 50 | 4, 50 | 4 – 9 | 4x 2 | E, F |
| QSFP56 to 4x SFP56 Passive Breakout DAC Cable | 200/ 4x 50 | 4, 50 | 0.5 – 3 | 4x 2 | E, F |
| 400Gbps QSFP-DD and OSFP | |||||
| QSFP-DD Active DAC Cable | 400 | 8, 50 | 4 – 9 | 16 | E |
| QSFP-DD Passive DAC Cable | 400 | 8. 50 | 0.5 – 3 | 16 | E |
| QSFP-DD to 2x QSFP56 Passive Breakout DAC Cable | 400/ 2x 200 | 8, 50 | 0.5 – 3 | 2x 8 | E |
| QSFP-DD to 4x QSFP56 Passive Breakout DAC Cable | 400/ 4x 100 | 8, 50 | 0.5 – 3 | 4x 4 | E |
| OSFP 400G Passive DAC Cable | 400 | 8, 50 | 0.5 – 3 | 16 | E |
| 400Gbps QSFP112, 800G OSFP and QSFP-DD800 | |||||
| QSFP112 Active DAC Cable | 400 | 4, 100 | 1 – 5 | 8 | E |
| QSFP112 Passive DAC Cable | 400 | 4, 100 | 0.5 – 2 | 8 | E |
| 800G OSFP Passive DAC Cable | 800 | 8, 100 | 0.5 – 2 | 16 | E |
| QSFP-DD800 Passive DAC Cable | 800 | 8, 100 | 0.5 – 2 | 16 | E |
| E = Ethernet, I = InfiniBand, F = Fibre Channel | |||||
For each product line, different lengths (meters) and wire gauges (AWG) and other customisation options including pull-tab colour, low-smoke zero-halogen cable jacket and colour, and EEPROM custom programming and pages are available.
Applications / Market for Direct Attach Copper (DAC) Cable
DAC cable is used for data connection applications in high-speed data centres.
Examples:
Servers
Switches
Routers
High-performance Computing
Storage
What is Direct Attach Copper (DAC) Cable?
Direct attach cables are factory terminated copper cable assemblies with SFP, QSFP and OSFP single and double density series pluggable modules.
Low cost and low power consumption with no heat produced and very high reliability make passive DAC the preferred choice for short distance (1-5M) data centre in-rack equipment interconnect application. Active DAC can preserve signal integrity with embedded retimer or redriver extending the reach up to 9M for inter-rack interconnect application. Active DAC also can be an option for cabling high density rack with thinner and more flexible cables.
Benefits of Direct Attach Copper (DAC) Cable
DAC Cables from Sate Optics are optimised for Ethernet, Infiniband and Fibre Channel data connection applications in data centres, with benefits that include:
Near-zero power consumption, low heat dissipation, very low cost
Complete cable assembly uniquely terminated at the factory to provide the most reliable operation
100% tested for signal integrity with serial number traceability
Product customisation available to meet customer specifications
Production capacity to meet mega sized global data centre demand
Innovative design development to support next-generation interconnect technology and deployment
| Features | Benefits |
| Wide AWG range | Provides cost, reach, signal integrity margin and cable flexibility optimisation |
| Passive copper length up to 6 metres | Meets industry standard signal integrity requirements up to lengths of 6 metres (varies depending on cable speed) |
| Unique foam dielectric cable jacket construction | Increased flexibility cables while maintaining signal integrity quality |
| Custom EEPROM programming | Programmable to customer requirements |
| Optimised PCB design | Provides superior margin for 24G NRZ, 50G PAM4 and 100G PAM4 signal integrity parameters against standard specification |
| Advanced wire stripping and cable termination process | Eliminate damage to the conductor and shield, prevent dielectric shrink back, protect solder joints, reinforced strain relief, all while maintaining signal integrity, product quality, and operational reliability |
| LSZH cable jacket and PCB options | Environmentally friendly |
| Custom solutions supported | Custom solutions forcible configuration, connector pin repurposing and beyond |
Why Choose Sate Optics for Direct Attach Copper (DAC) Cable?
Sate Optics’s engineering teams can customise a solution to a customer’s specific requirements and provide quick turn custom design samples supported by skilled local sales and field applications engineering (FAE) teams. A global factory footprint, which includes tariff-free manufacturing sites, efficient global supply chain and logistics support, enables reduced product lead time and efficient cost management.
By partnering with Sate Optics on data centre high-speed interconnect solutions, customers benefit from strong technical expertise and manufacturing prowess to help future-proof data centres and fulfil infrastructure development and growth goals.
Contact Sate Optics for Direct Attach Copper (DAC) Cable
Sate Optics for further assistance with DAC cable.
